BASIS 500

BASIS 500

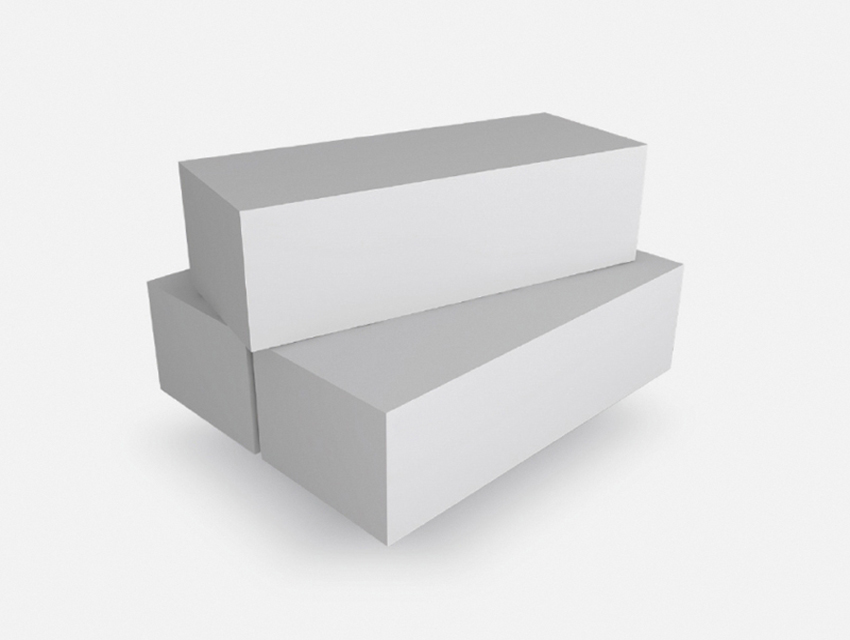

Aerated concrete blocks with density from 500 to 600 kg/m³ are used for erection of external and internal walls in low-rise (up to 3 floors) construction. Such blocks allow to build external and internal walls and partitions, and also are often used for filling walls in cast-in-place concrete frame objects.

Full description


Thickness,
mm 		Height,
mm 		Length,
mm 		Block volume,
m³ 		Maximum possible weight of block,
kg 		Average dry density,
kg/m³ 		Minimal guaranteed
strength class 		Freeze-thaw resistance,
not lesser then … cycles 		Dry density thermal conduction,
W/m•С° not more than 		Quantity of blocks on the pallet,

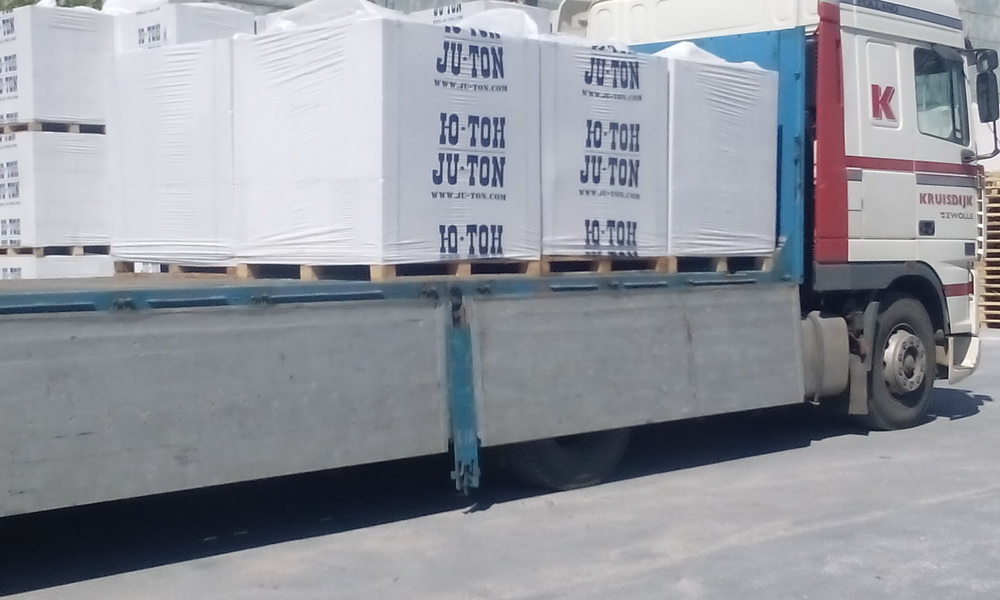

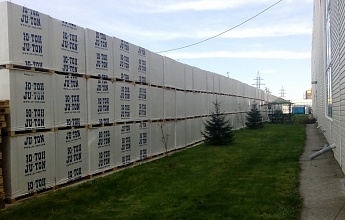

pieces 		Volume of blocks on the pallet,
m³
100 400 600 0,024 17.172 500 B 2.5
 F 35
 0.12 72 1.728
300 200 600 0,036 25.758 500 B 2.5
 F 35
 0.12 48 1.728
400 200 600 0,048 34.344 500 B 2.5
 F 35
 0.12 36 1.728

* Maximum possible weight of block is calculated using the upper limit of aerated concrete density of 420 kg/ м³, according to ДСТУ Б В.2.7-137 (State Standard of Ukraine Б В.2.7-137) and block moisture of 35%.
